BAFANG 1000W Rear Hub Motor Conversion Kit with 30A Controller

Complete E-Bike Upgrade System – Universal Compatibility

POWERFUL 1000W MOTOR + 30A CONTROLLER COMBO

6 DISPLAY OPTIONS | OPEN STANDARD SYSTEM | PROFESSIONAL GRADE

---

Complete Electric Bike Conversion in One Kit

Transform any compatible bicycle into a high-performance electric bike with this professional-grade BAFANG conversion system. Featuring our popular 30A controller paired with BAFANG’s proven 1000W rear hub motor.

Key Performance Specifications:

• 1000W Motor Power – Superior acceleration and hill climbing
• 30A Smart Controller – Maximum current output for peak performance
• 85 N.m Torque – Tackle steep hills with confidence
• Up to 28 MPH – Class 3 e-bike performance
• >80% Efficiency – Extended range from your battery

Why Choose Open Standard Components:

• ✅ Universal Compatibility – Works with standard 48V batteries and accessories
• ✅ Easy Maintenance – Standard parts available everywhere
• ✅ Future Upgrade Path – Never locked into one manufacturer’s ecosystem
• ✅ Cost-Effective Repairs – Affordable replacement parts and service
• ✅ 6 Display Options – Choose the interface that suits your needs

Complete Kit Includes:

Key Features & Specifications

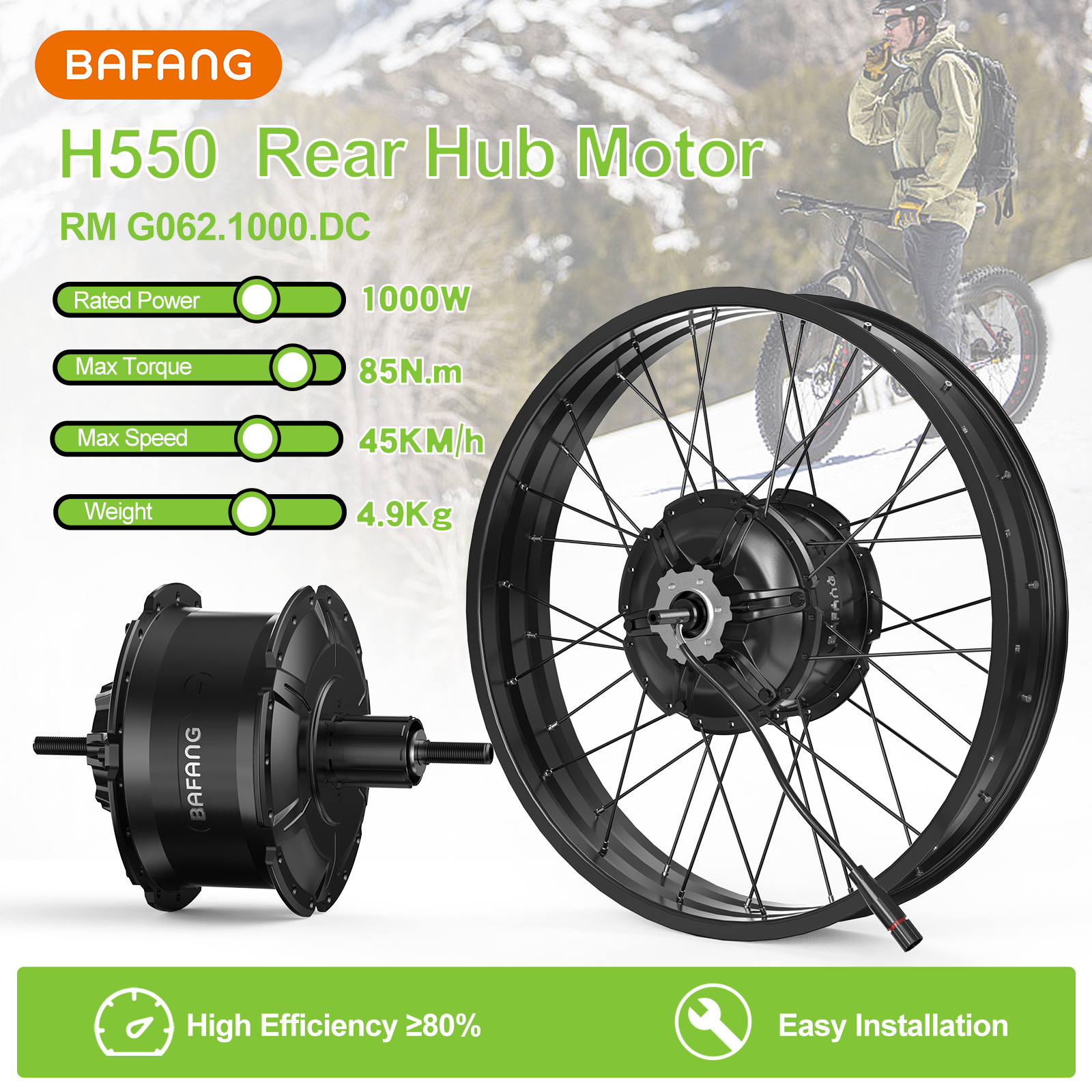

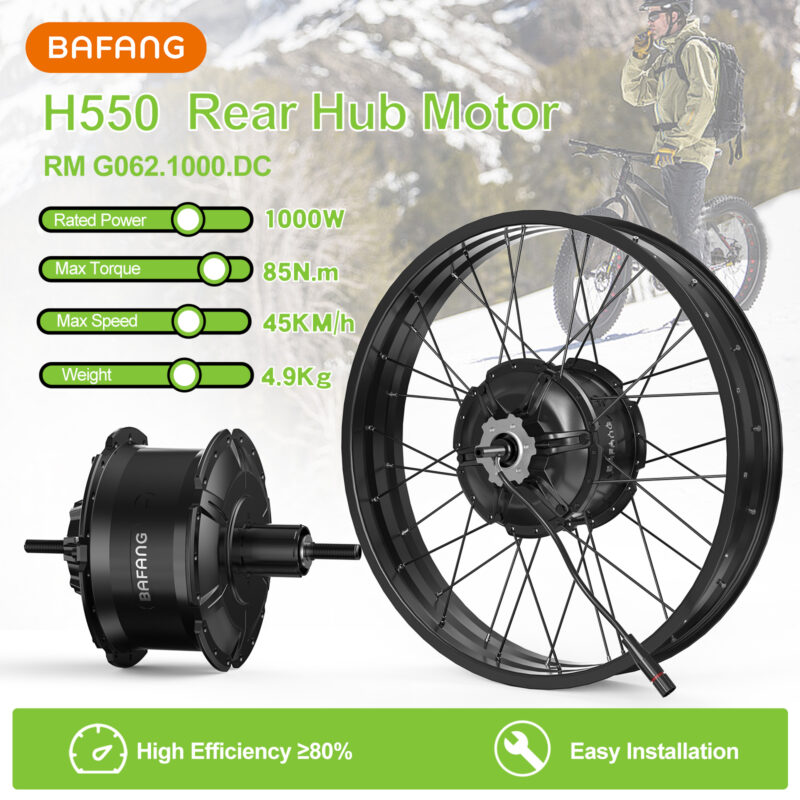

BAFANG H550 Rear Hub Motor

• Power Output: 1000W rated (48V system)
• Maximum Torque: 85 N.m for exceptional hill-climbing power
• Top Speed: Up to 45 km/h (28 mph)
• Weight: Only 4.9kg – lightweight yet powerful
• Efficiency: >80% energy conversion
• Noise Level: <55dB whisper-quiet operation
• Weather Protection: IPX6 waterproof rating
• Operating Temperature: -20°C to 45°C
• Brake System: Integrated disc brake compatibility

Advanced 30A Smart Controller System

• Current Output: 30A maximum for superior acceleration
• Voltage: 48V optimized system
• Low Voltage Protection: 39±1V safety cutoff
• Compact Design: 200mm x 72mm x 49mm controller box

Choose Your Display (6 Options Available)

Most Popular Displays:

• 500C Display – Essential metrics with clear LCD readout
• EKD01 Display – Compact design with speed and battery indicators

Other Great Display Models:

• 750C Display – Color TFT screen with comprehensive data
• EGO Display – Premium smartphone-style interface
• EGGRIDER Display – Professional-grade with advanced customization
• DPC18 Display – Large format with enhanced visibility

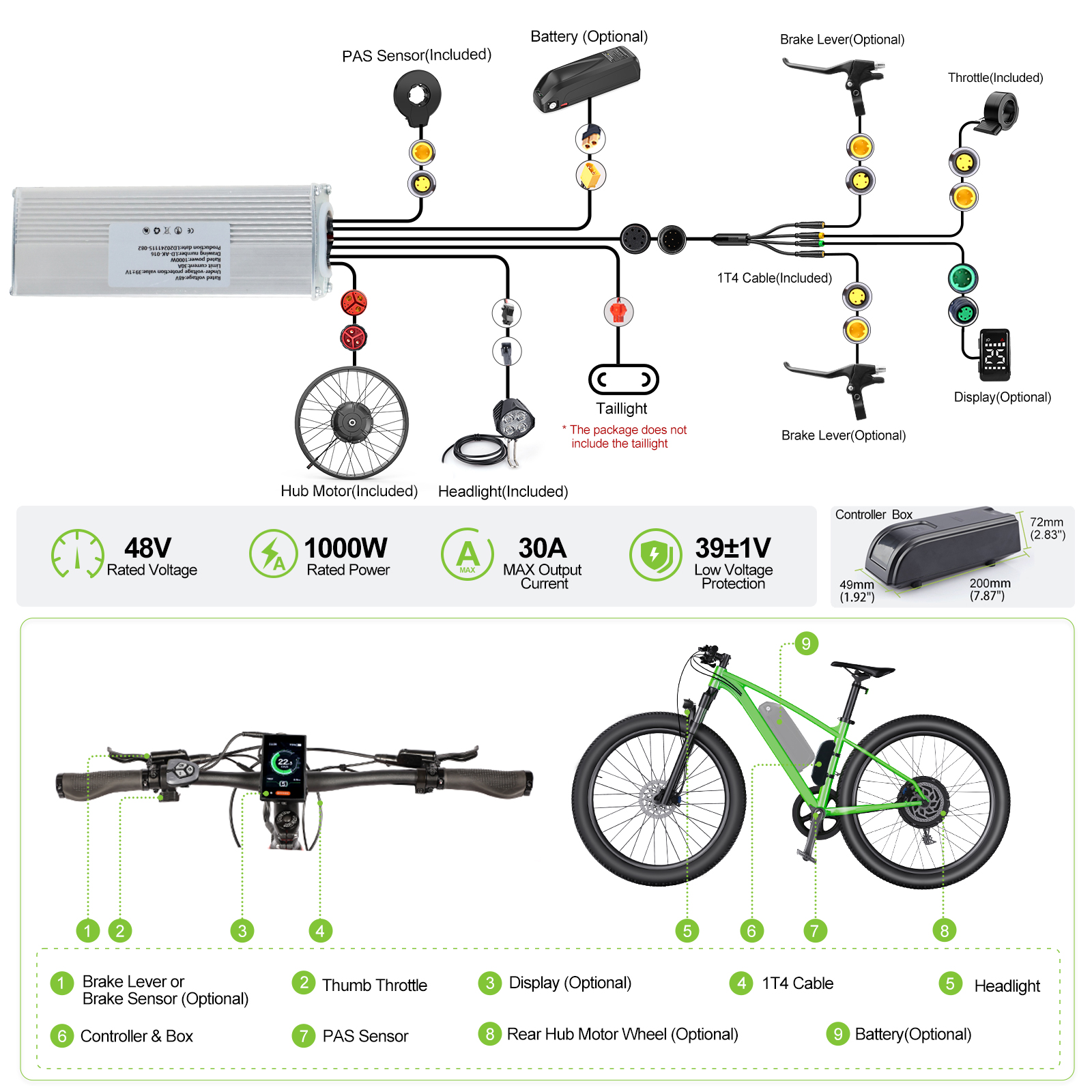

Complete Conversion Kit Includes

Core Components

• BAFANG H550 1000W rear hub motor (pre-laced wheel)
• 30A intelligent controller with advanced protection systems
• Your choice of display unit (6 options available)
• Pedal Assist Sensor (PAS) for natural riding feel
• Thumb throttle for instant power control

Connectivity & Cables

• Complete 1T4 wiring harness system
• Universal brake lever sensors (2x included)
• Extension cables and connectors
• Waterproof cable connections throughout

Safety & Convenience

• Integrated headlight with auto-sensing
• Professional-grade disc brake integration
• Speed sensor for accurate performance tracking
• Comprehensive installation hardware

Why Choose This System Over Proprietary Alternatives?

✅ Universal Compatibility

Unlike RAD Power Bikes’ locked ecosystem, this system works with virtually any bike frame with 175mm rear dropout spacing.

✅ Future-Proof Investment

Standard connections mean easy upgrades, repairs, and part replacement without manufacturer dependency.

✅ Superior Performance

1000W motor with 30A controller delivers significantly more power than most proprietary systems.

✅ Cost-Effective Maintenance

Open-standard components cost 50-70% less to service than proprietary alternatives.

✅ Professional Grade Quality

BAFANG’s reputation for reliability and performance in the e-bike industry is unmatched.

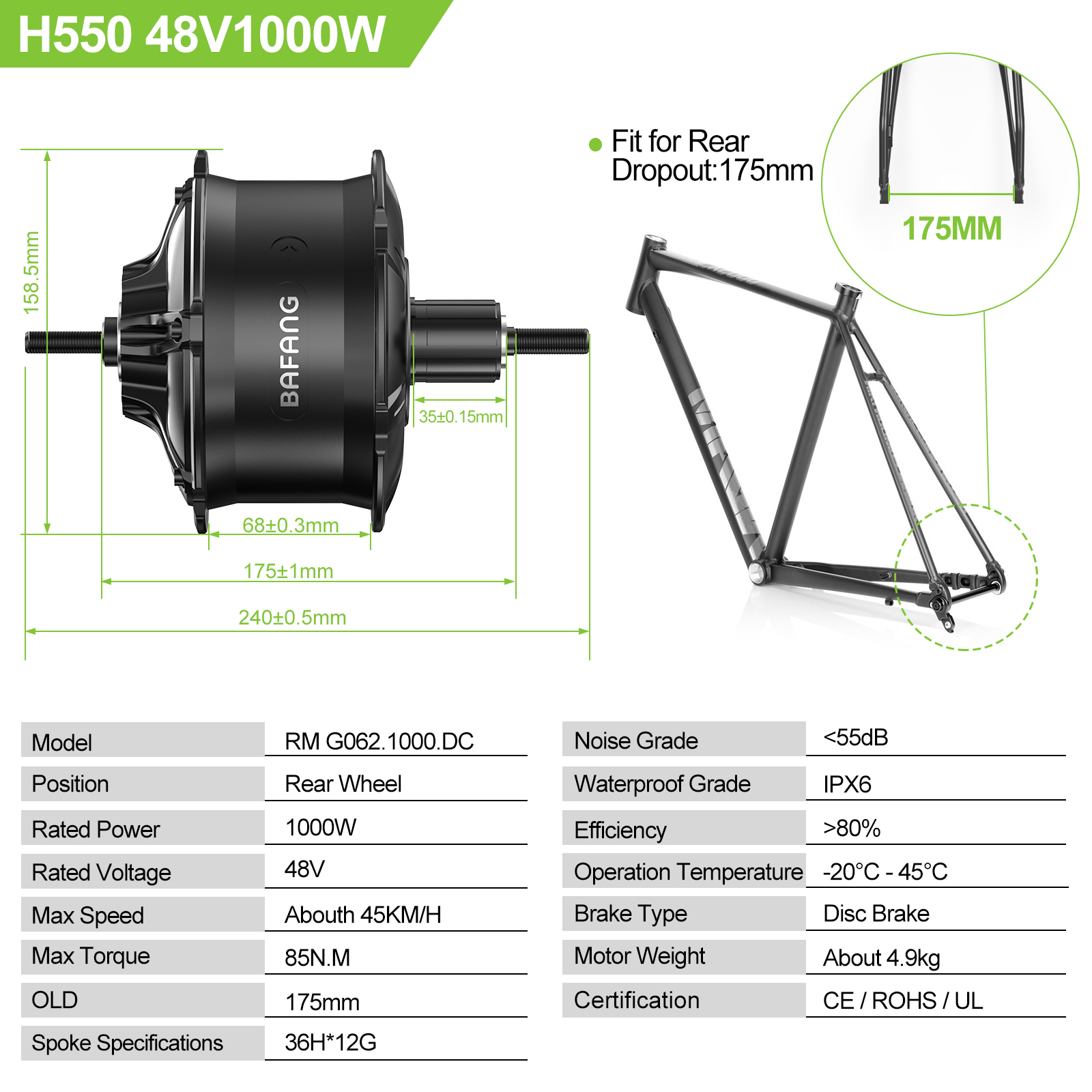

Technical Specifications

Component	Specification
Motor Type	BAFANG H550 Rear Hub
Power Rating	1000W continuous
Voltage	48V DC system
Controller	30A smart controller
Max Speed	45 km/h (28 mph)
Max Torque	85 N.m
Wheel Compatibility	20″ or 26″ rim options
Dropout Width	175mm rear spacing required
Spoke Count	36H (high-strength spokes included)
Brake Type	Disc brake compatible
Display Options	6 different models available
Waterproof Rating	IPX6 throughout system

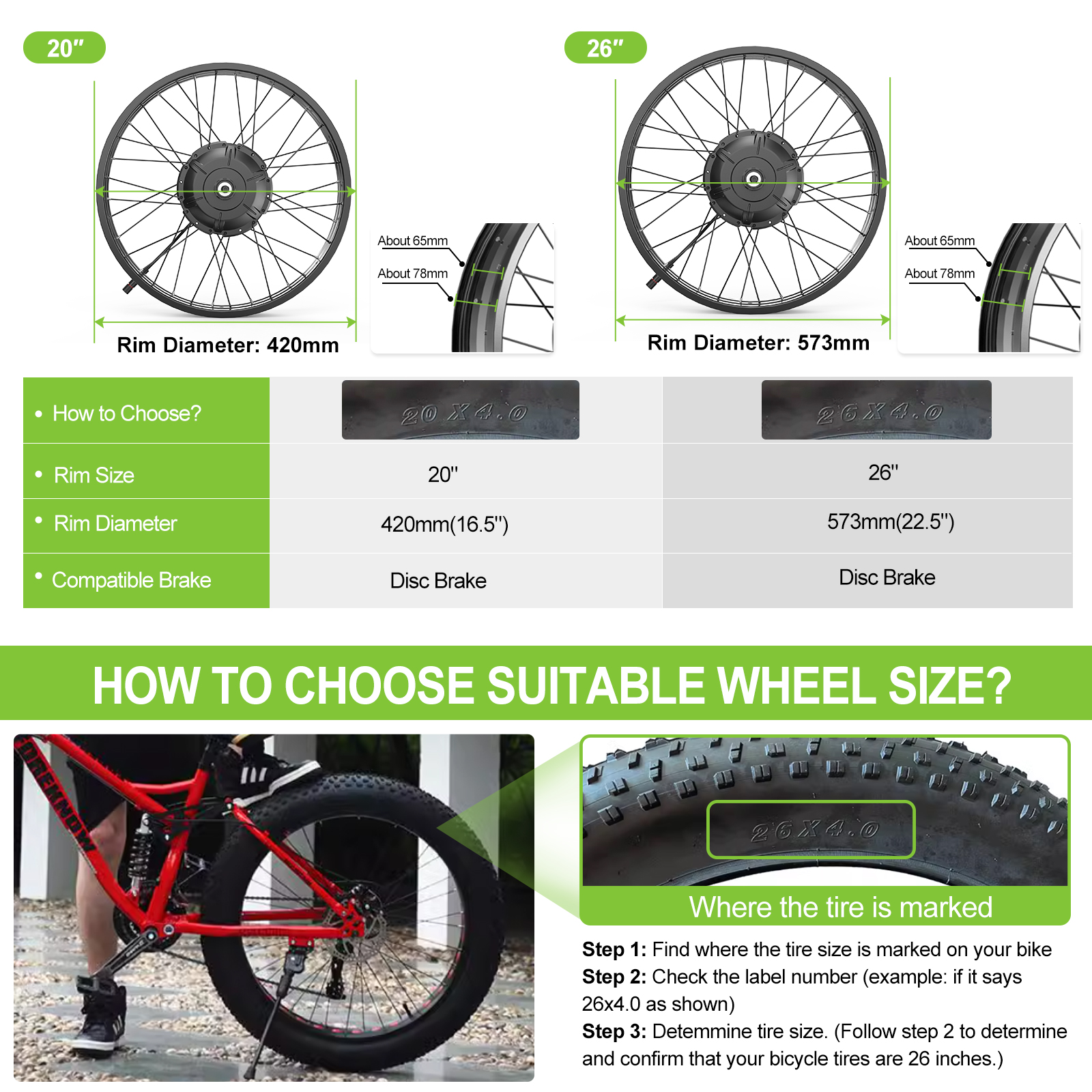

Wheel Size Options

20″ Fat Tire Setup

• Rim Diameter: 420mm (16.5″)
• Ideal for: Fat tire e-bikes, cargo bikes, compact commuters

26″ Standard Setup

• Rim Diameter: 573mm (22.5″)
• Ideal for: Mountain bikes, hybrid bikes, standard commuters

Installation & Compatibility

Compatible Bike Types

• Mountain bikes with disc brakes
• Hybrid and commuter bikes
• Fat tire bikes (20″ option)
• Cargo and utility bikes
• Custom e-bike builds

Frame Requirements

• 175mm rear dropout spacing (standard for most bikes)
• Disc brake mounting tabs
• Sufficient frame clearance for motor housing

Professional Installation Recommended

While this kit includes comprehensive installation hardware, professional assembly ensures optimal performance and safety. Installation typically takes 2-4 hours for experienced mechanics.

Performance Benefits

Immediate Power Delivery

The 30A controller provides instant acceleration that leaves proprietary systems behind.

Extended Range Capability

High-efficiency motor design maximizes every watt-hour from your battery system.

Hill Climbing Excellence

85 N.m of torque tackles steep grades that stop lesser systems.

Customizable Performance

Unlike locked proprietary systems, adjust power curves, speed limits, and assist levels to your preference.

What Makes This Kit Special

✨ Open Standard Architecture

No vendor lock-in means freedom to upgrade, modify, and maintain your system with readily available parts.

✨ Professional-Grade Components

BAFANG’s commercial-quality motor paired with our proven 35A controller delivers reliability that proprietary consumer systems can’t match.

✨ Display Flexibility

Six display options mean you can choose the perfect interface for your riding style and budget.

✨ Future Expansion Ready

Standard connections accommodate future upgrades like larger batteries, additional sensors, or advanced displays.

Comparison: This System vs. Proprietary E-Bikes

Feature	This Conversion Kit	RAD Power Bikes	Other Proprietary
Motor Power	1000W continuous	750W limited	500-750W typical
Controller	30A professional	22A maximum	15-25A typical
Repair Cost	Standard parts	Manufacturer only	Manufacturer only
Upgrade Path	Unlimited	None/Limited	None/Limited
Display Options	6 choices	1 proprietary	1-2 options
Long-term Value	Excellent	Poor (obsolescence)	Poor (obsolescence)

Package Options & Displays

Most Popular Package

• Kit with 500C or EKD01 display
• Essential functionality with clear metrics
• Perfect for straightforward commuting needs

Advanced Package (Recommended for enthusiasts)

• Kit with 750C, EGO, EGGRIDER, or DPC18 display
• Color screens with comprehensive data
• Advanced customization and connectivity options

Installation Support & Warranty

Comprehensive Documentation

• Detailed installation manual included
• Wiring diagrams for all components
• Video installation guides available online

Technical Support

• Expert technical support team
• Installation troubleshooting assistance
• Performance optimization guidance

Warranty Coverage

• 2-year motor warranty
• 1-year controller and electronics warranty
• 6-month accessory component warranty

Order Your Freedom from Proprietary E-Bike Systems

Transform your traditional bike into a high-performance electric vehicle that you own completely – no manufacturer lock-in, no proprietary parts, no obsolescence fears. This BAFANG H550 conversion kit with 35A controller represents the pinnacle of DIY e-bike technology.

Ready to experience true e-bike freedom? Choose your display option and break free from the proprietary e-bike world today.

Additional Information:

• Package Delivery: May arrive in multiple packages; contact us if incomplete
• Installation: Follow manual steps before installation; ensure power is off during connection
• Safety Note: Confirm your wiring system’s compatibility with the kit’s amperage demands
