BAFANG 1000W Rear Hub Motor Conversion Kit with 30A Controller

BAFANG 1000W Rear Hub Motor Conversion Kit with 30A Controller

£554.98 GBP
£554.98 GBP £854.98 GBP
Taxes included.
Options
Display
Single Speed Adapter

  • 1000W Motor + 30A Controller Combo - Highlights the powerful pairing that's your bestseller combination

  • 6 Professional Display Options Available - Shows choice/customisation advantage

  • Universal Open Standard System - Key differentiator from proprietary systems

  • Complete Installation Kit Included - Reassures that it's everything needed


⚠️ UK Legal Notice: Off-road use only | Full legal requirements ↓


Transform Your Ride. Unleash the Wild.





Upgrade your eBike with the 1000W Fat Bike Motor Kit and experience more than just speed — experience freedom. Climb steeper trails, cruise further, and explore the unbeaten path with confidence.






  • ✅ Crush hills effortlessly




  • ✅ Hit speeds up to 28mph (off-road)




  • ✅ Ride further with less effort





Warning: Once you install this, your old ride will feel boring.





Why Riders Love This Kit





Because it's not just an upgrade. It's a mindset shift.





Imagine this: You're powering up a steep forest track, the motor silent but strong. You crest the hill and feel that rush — not just from the view, but from knowing nothing is off-limits anymore. No more pushing the bike uphill. No more cutting rides short.





Whether you're adventuring, or just escaping the everyday — this kit helps you ride further, faster, and with a smile on your face.

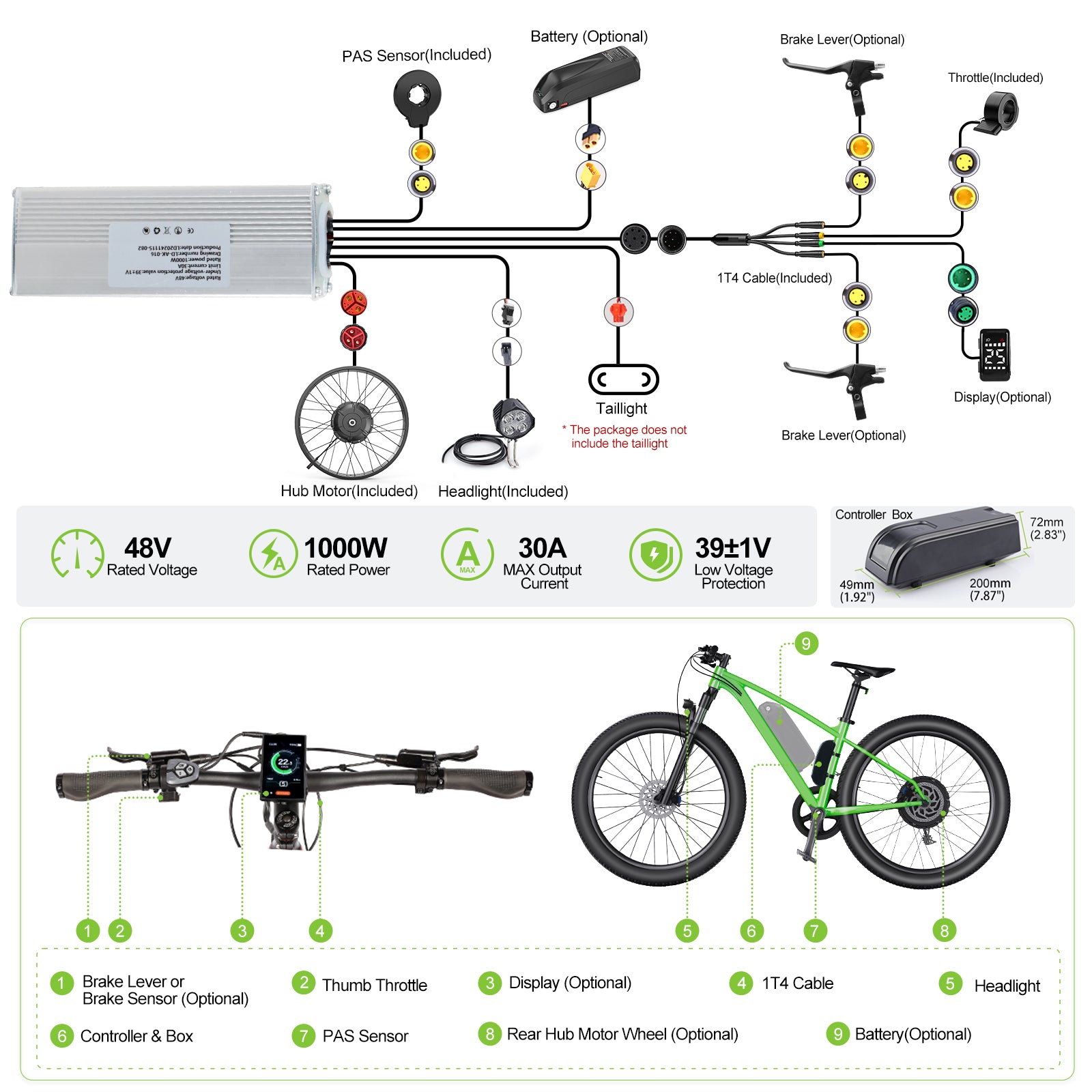

What’s in the Box?





Everything you need for a serious upgrade:






  • 1000W Brushless Hub Motor: Reliable, efficient, and powerful for fat tyre bikes




  • 35A Controller: Delivers torque when you need it most




  • Colour LCD Display: Speed, battery, and performance at a glance




  • Thumb Throttle: Cruise effortlessly when your legs need a break




  • Pedal Assist Sensor (PAS): 5 levels of assist for a custom ride feel





Optional extras available — just ask if you need help selecting the right configuration for your bike.





Who This Kit Is For






  • Adventurers: Go further off-road and conquer new terrain




  • Haulers: Carry more cargo or passengers without feeling the weight




  • Weekend Warriors: Rediscover your favourite off road routes with newfound power





Where will your first ride take you?





Need Help? We’ve Got Your Back.





Not sure if this kit will fit your bike? Want help installing it? Drop us a message — we’ve supported hundreds of riders through upgrades just like this.





⚠️ Important: This 1000W kit is not legal for public road use in the UK without type approval. It's perfect for private land, off-road, and adventure use.





Ride safe. Ride smart. Ride free.Get Personal Advice

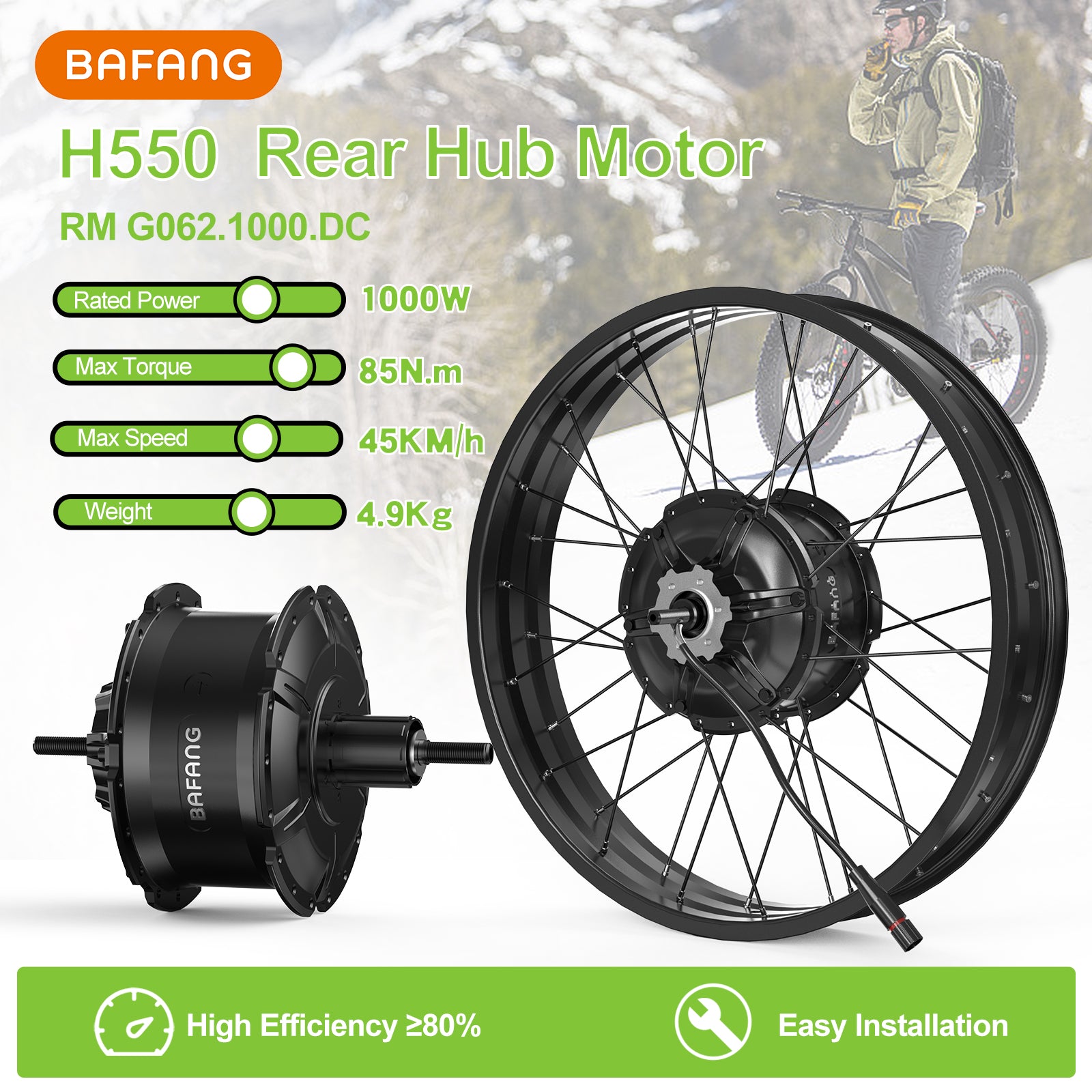

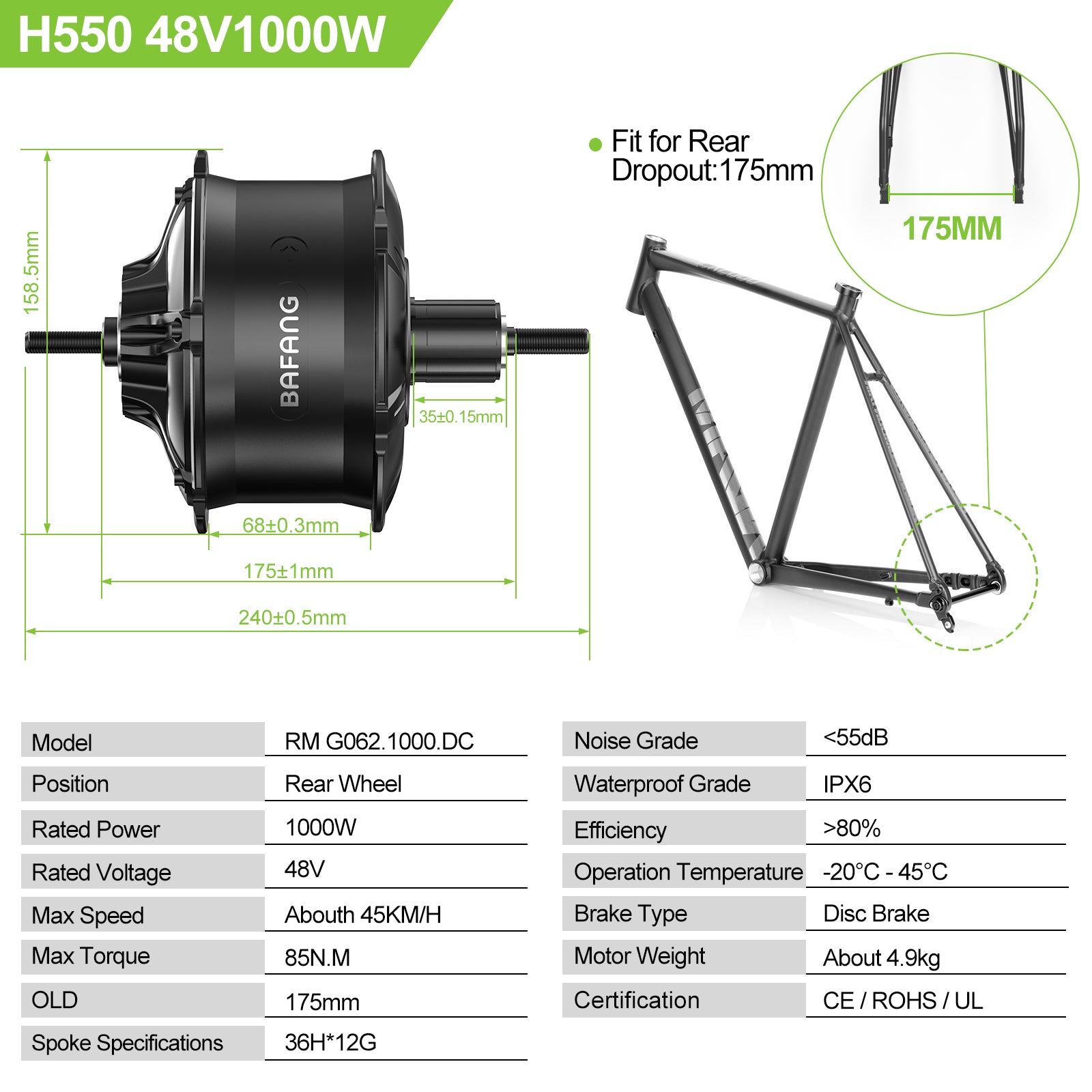

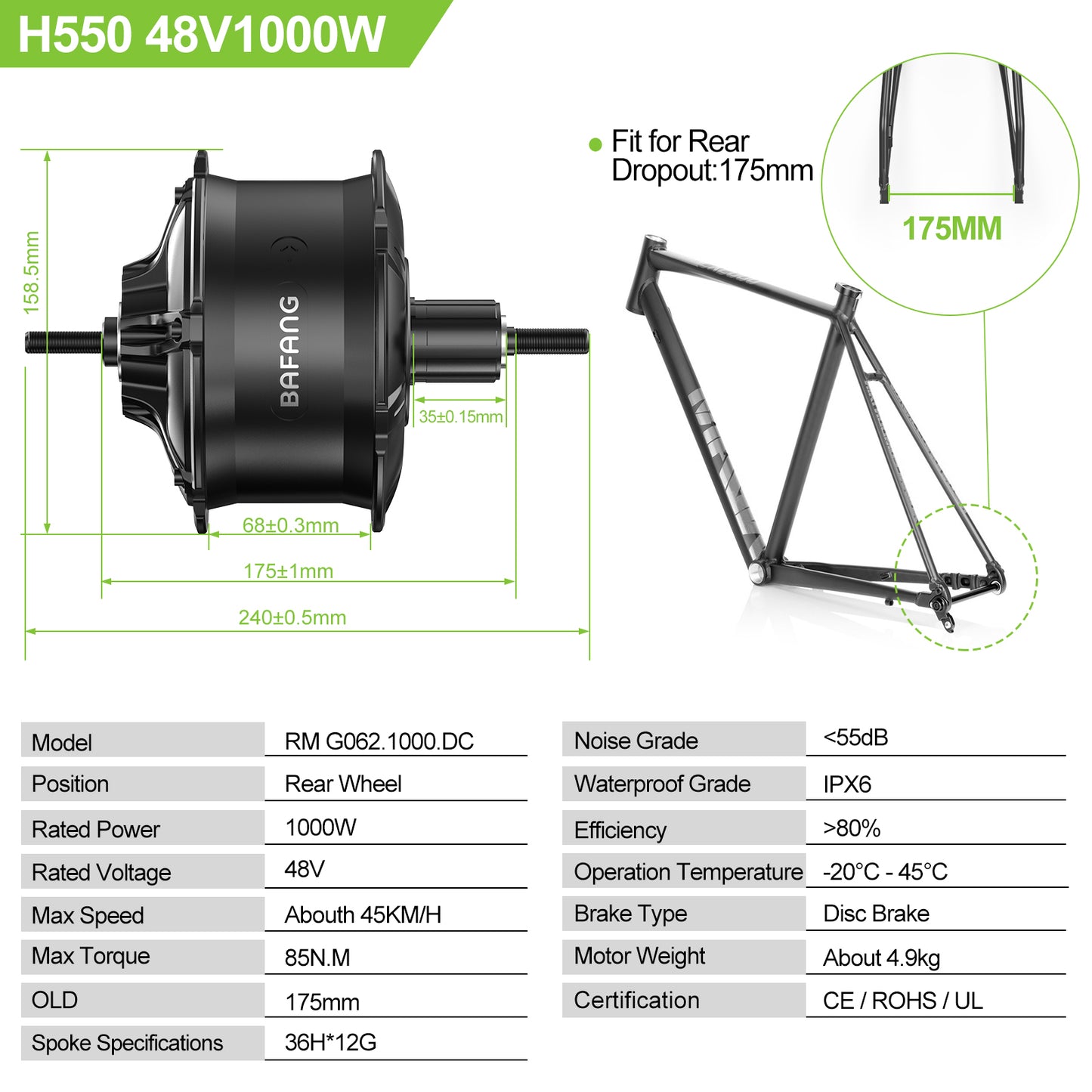

Technical Specifications





Component Specification
Motor Type BAFANG H550 Rear Hub
Power Rating 1000W continuous
Voltage 48V DC system
Controller 30A smart controller
Max Speed 45 km/h (28 mph)
Max Torque 85 N.m
Wheel Compatibility 20" or 26" rim options
Dropout Width 175mm rear spacing required
Spoke Count 36H (high-strength spokes included)
Brake Type Disc brake compatible
Display Options 6 different models available
Waterproof Rating IPX6 throughout system

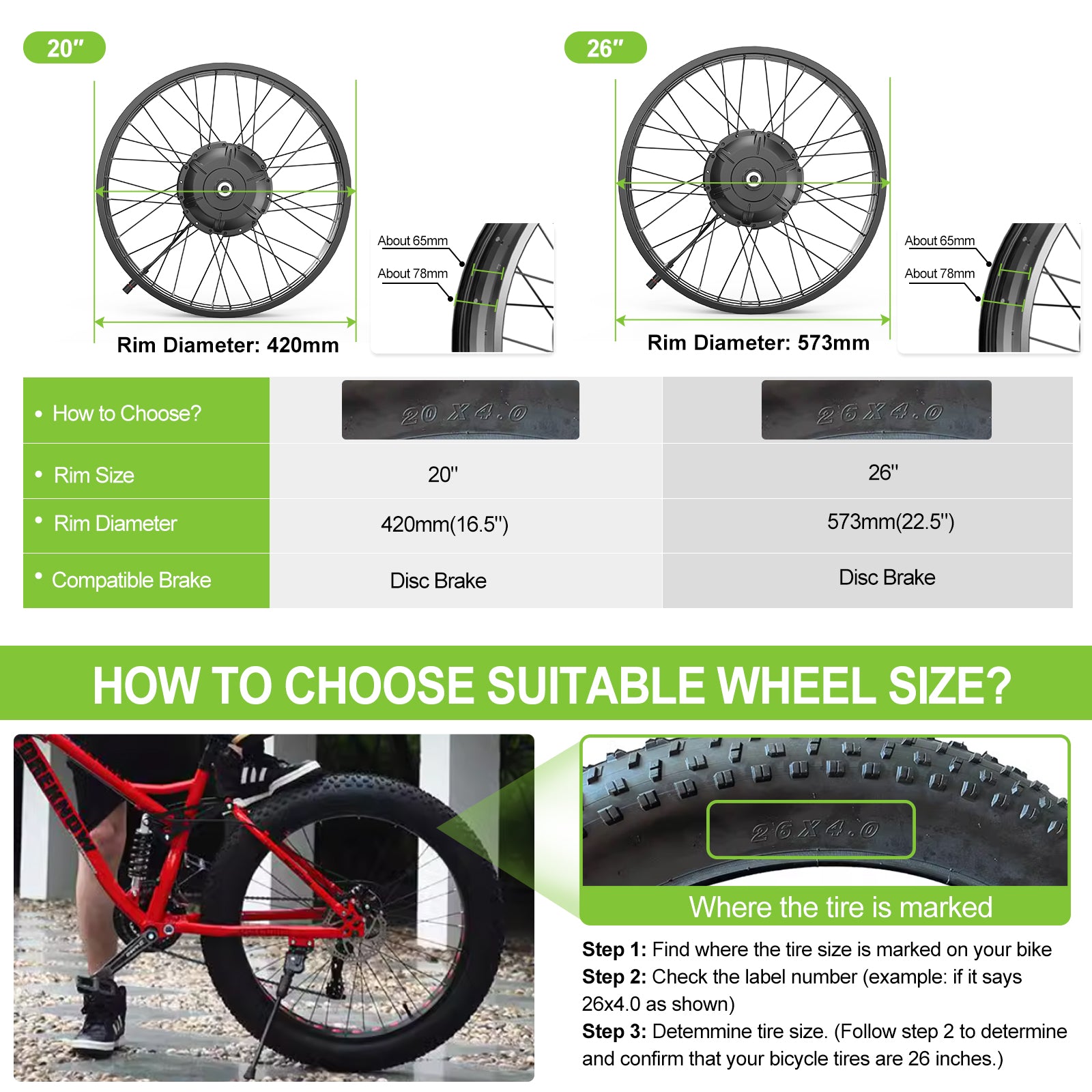

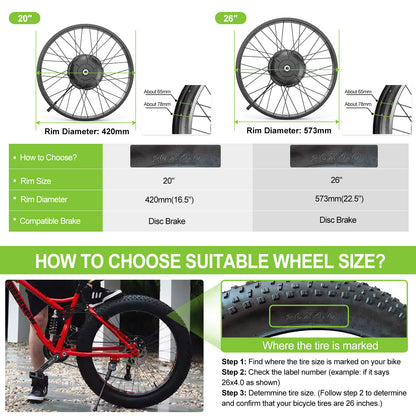

Wheel Size Options





20" Fat Tire Setup






  • Rim Diameter: 420mm (16.5")




  • Ideal for: Fat tire e-bikes, cargo bikes, compact commuters





26" Standard Setup






  • Rim Diameter: 573mm (22.5")




  • Ideal for: Mountain bikes, hybrid bikes, standard commuters





Installation & Compatibility





Compatible Bike Types






  • Mountain bikes with disc brakes




  • Hybrid and commuter bikes




  • Fat tire bikes (20" option)




  • Cargo and utility bikes




  • Custom e-bike builds





Frame Requirements






  • 175mm rear dropout spacing (standard for most bikes)




  • Disc brake mounting tabs




  • Sufficient frame clearance for motor housing









While this kit includes comprehensive installation hardware, professional assembly ensures optimal performance and safety. Installation typically takes 2-4 hours for experienced mechanics.





Comparison: This System vs. Proprietary E-Bikes





Feature This Conversion Kit RAD Power Bikes Other Proprietary
Motor Power 1000W continuous 750W limited 500-750W typical
Controller 30A professional 22A maximum 15-25A typical
Repair Cost Standard parts Manufacturer only Manufacturer only
Upgrade Path Unlimited None/Limited None/Limited
Display Options 6 choices 1 proprietary 1-2 options
Long-term Value Excellent Poor (obsolescence) Poor (obsolescence)




Package Options & Displays










  • Kit with 500C or EKD01 display




  • Essential functionality with clear metrics




  • Perfect for straightforward commuting needs










  • Kit with 750C, EGO, EGGRIDER, or DPC18 display




  • Color screens with comprehensive data




  • Advanced customization and connectivity options





Installation Support & Warranty





Comprehensive Documentation






  • Detailed installation manual included




  • Wiring diagrams for all components




  • Video installation guides available online





Technical Support






  • Expert technical support team




  • Installation troubleshooting assistance




  • Performance optimization guidance





Warranty Coverage






  • 2-year motor warranty




  • 1-year controller and electronics warranty




  • 6-month accessory component warranty





Order Your Freedom from Proprietary E-Bike Systems





Transform your traditional bike into a high-performance electric vehicle that you own completely - no manufacturer lock-in, no proprietary parts, no obsolescence fears. This BAFANG H550 conversion kit with 35A controller represents the pinnacle of DIY e-bike technology.





Ready to experience true e-bike freedom? Choose your display option and break free from the proprietary e-bike world today.





Additional Information:






  • Package Delivery: May arrive in multiple packages; contact us if incomplete




  • Installation: Follow manual steps before installation; ensure power is off during connection




  • Safety Note: Confirm your wiring system's compatibility with the kit's amperage demands
